Reflective IMO Safety Signs


NEW!  IMO Safety Signs Now with 3M Reflective Film


GENERAL DESCRIPTION

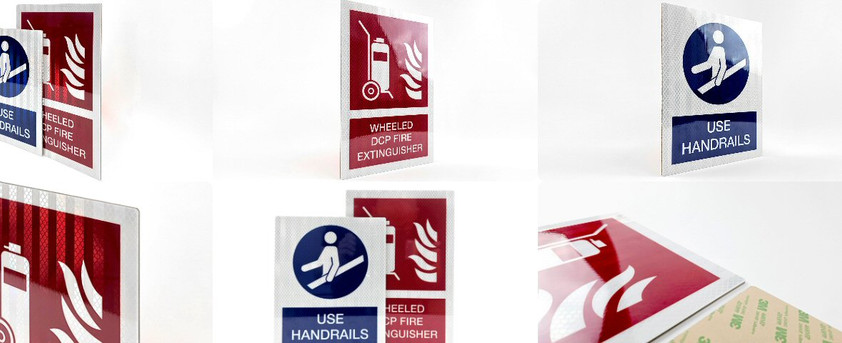

Retroreflective IMO signs designed for demanding marine and offshore conditions. A multi-layer construction featuring 3M Engineer Grade Prismatic (EGP) reflective film returns incident light back to its source (e.g., flashlight, headlamp, searchlight), significantly enhancing legibility of safety and evacuation messages in low-light or emergency situations.


3M Engineer Grade Prismatic Reflective Film

Reflective surfaces use microscopic glass beads or prismatic elements that direct light precisely back to the viewer. The Engineer Grade Prismatic film used in our IMO signage is differentiated from other prismatic or encapsulated lens materials by the distinctive surface pattern and the visible integral ‘EGP’ marking.

Thanks to a specialized printing method, the entire surface of each sign, including the printed area, remains fully retro-reflective, providing consistent performance across the whole sign face.


Standards Compliance

A-SPE signs are compliant with applicable IMO and ISO standards for marine safety signage, including:

  • IMO A.1116(30)

  • ISO 24409

  • IMO A.760(18) (LSA)

  • IMO A.952(23), with reference to ISO 17631 (fire control plans)


INTENDED USE: Exterior/interior safety and information signage for offshore environments (oil & gas platforms, wind farms, vessels and marine units) to ensure high visibility at night or during power loss.


KEY PERFORMANCE PROPERTIES

• Very high night-time and emergency visibility with 3M EGP technology.

• Environmental resistance: UV exposure, high humidity, seawater, dust and mild chemicals.

• Temperature resistance: continuous up to +77°C, short-term up to +94°C.

• Service life: up to 10 years (indoor); up to 5 years (outdoor)*.

• Reliable, durable adhesion due to high-tack 3M acrylic system.

*) Service life depends on UV exposure and local environmental conditions.

Explore the product and request a quote! Product codes are the same as for photoluminescent IMO signs. Remember to mention or add the letter 'R' after the product code if you wish to order the sign with reflective material.


Structure and materials

  • Substrate: rigid PET substrate.

  • Reflective layer: 3M EGP reflective film with distinctive surface pattern and visible EGP marking.

  • Print: printed graphics protected by a UV‑protective overlaminate.

  • Adhesive/installation: self‑adhesive application using a high‑performance 3M acrylic adhesive for secure, long‑lasting bonding.

  • Layer order: UV protective overlaminate; 3M reflective film; clear PET; 3M adhesive layer; removable release liner.

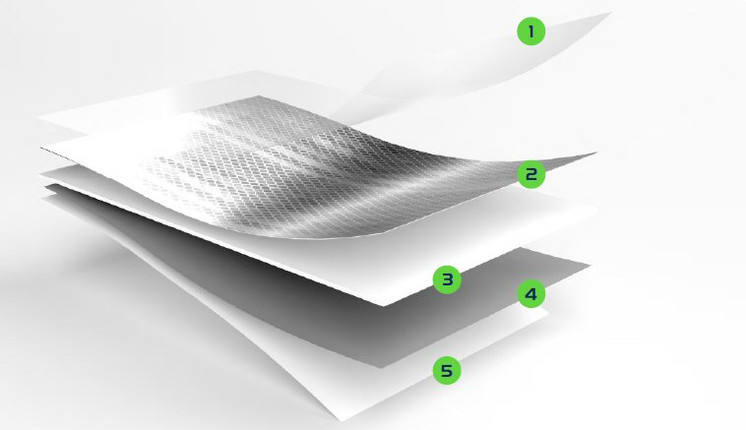

Material layers

  • UV-protected overlaminate, 1

  • 3M reflective film, 2

  • Clear PET substrate, 3

  • 3M adhesive layer, 4

  • Removable release liner, 5


Technical specifications

  • Materials: PET; 3M reflective film; UV-protected overlaminate.

  • Multi-layer construction: yes.

  • Total thickness: 2.40 mm.

  • Operating temperature: −30 °C … +77 °C (long term).

  • Short-term max temperature: +94 °C.

  • Minimum installation temperature: +15 °C (recommended during installation).

  • Surface preparation: clean, dry and stable substrates.

  • Installation method: self-adhesive 3M high-performance acrylic adhesive.

  • UV resistance: excellent; UV overlaminate protects the print.

  • Chemical resistance: mild chemicals, seawater.

  • Suitability for outdoor use: yes; wet, corrosion-prone and dusty environments.

  • Retroreflectivity on printed areas: entire surface is retroreflective.

  • Special printing method: retroreflective to EN 12899-1, class RA1.

  • Colour/brightness properties: EN 12899-1, class CR2.

  • Expected service life (indoor): 7–10 years*.

  • Expected service life (outdoor): approximately 5 years

*) Service life depends on UV exposure and local environmental conditions.



Installation Instructions

  • Install on a flat, smooth, dry, and clean surface.

  • Apply at a temperature above +15 °C; press evenly across the entire surface.

  • Avoid contamination and exposure of edges to aggressive substances; full adhesion is achieved after the adhesive cures (24 hours).

Maintenance and Storage

  • Clean the marking surfaces with mild detergent and water using a soft, non-abrasive cloth or sponge.

  • Rinse with clean water and allow to dry.

  • Store AS 01R reflective signs at a temperature of 10–30 °C and relative humidity of 40–60%.

The information in this TDS is based on manufacturer guidelines for the AS 01R series and is intended as a reference for product selection and use; actual performance may vary depending on environmental conditions, installation method, and maintenance.
