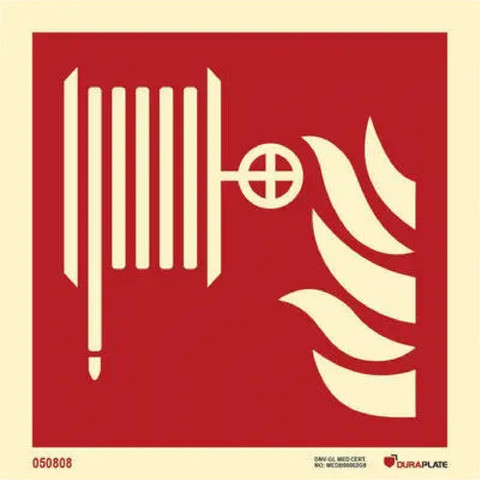

Fire Hose Reel
Available in different sizes and with different surface materials. Price is a starting price.
All materials have a hard-adhesive, self-adhesive backing sticker.
More detailed information on the materials can be found in the PRODUCT INFORMATION menu.
A wide range of backlit AS01 IMO signs is available with the following adhesive-based backing materials.
- Foil 0.35 mm
- Dura-Plate 1.5 mm
- PVC 1.0 mm
- Aluminum 1.2 mm
The multi-layer structure of Dura-Plate materials protects the printing and photoluminescent layer from UV rays, seawater, mechanical damage and harsh conditions both on land and at sea. The signs are equipped with excellent adhesion properties. The self-adhesive foam of the background ensures strong adhesion to various flat and uneven surfaces.
Our photoluminescent signs are DNV approved with MED compliant markings. This guarantees the highest quality standards for the shipping industry. They meet the following standards and regulations both on land and at sea. The products are environmentally friendly.
- IMO Res. A.752 (18)
- DIN 67510
- ISO 15370: 2010
- IEC 60092-101: 2001
Operating temperature: -30 °C to + 65 °C (-22 ° F to + 149 °F)
Surface preparation: Yes
Installation method: Excellent UV resistance:> 26
Weather resistance: Excellent
Chemical resistance: Very good
Seawater resistant: Yes
Working life (indoors): 10 years
Working life (outdoors): 3-5 years
Insoluble in: Organic solvents
Decomposition: Acids, water, alkalis
Appearance: Yellowish Specific gravity: 3.4g - 3.6g / cm³
Temperature resistance: -50 °C to + 250 °C
Light waves: UV radiation, white light (all visible lights)
Peak value: 520nm
Glowing color: Yellow-green
