AS-66 NoRust Active Shield Tapes
An effective anti-corrosion solution providing cathodic protection. Available in larger quantities—request a quote!
NoRustActiveShield Tape
An effective anti-corrosion solution providing cathodic protection, reinforced with a bituminous membrane and covered with HDPE film, designed for extreme fields of applications.
Dual Anti-Corrosion Protection

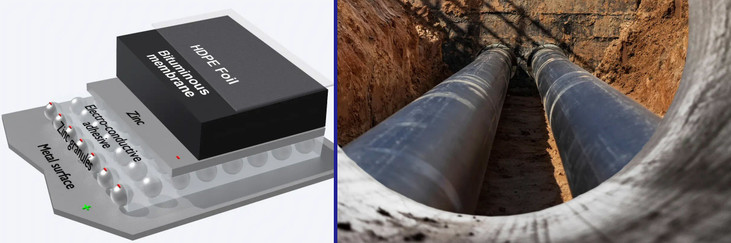

The new-generation ActiveShield anti-corrosion tape owes its effectiveness to both active and passive protection. This composite product consists of an external membrane layer that ensures tightness, and an inner layer that acts as an anode.
Active Protection
The Active protection is achieved through the use of high-purity zinc tape with electro-conductive adhesive, ensuring excellent conductivity between the protected metal and zinc.Zinc, being more electrochemically active than iron, acts as an effective anode when used to cover steel surfaces. This prevents the formation of small anodic and cathodic regions on the metal surface, thereby significantly reducing the development and spread of corrosion.As a sacrificial coating, zinc always corrodes first, in contrast to other coatings like paint or aluminium, where steel corrosion can undercut the coating over time, diminishing its effectiveness.
Passive Protection
Passive protection is achieved through a bituminous membrane covered with a high-quality HDPE film. This structure ensures excellent sealing and creates an effective barrier against mechanical damage, acids, and soil moisture, preventing corrosion. Additionally, the material is resistant to stretching and bending and is completely waterproof.
Key Features:
High durability
Water resistance
Steam resistance
Suitable for harsh underground conditions
Passive Protection – NoRust ActiveShield Tape
Feature Description
| Protection Mechanism | Bituminous membrane, coated with high-quality HDPE film |
| Sealing Properties | Excellent sealing, prevents corrosion |
| Mechanical Protection | Shields against mechanical damage, acids, and soil moisture |
| Durability | High tensile and bending resistance |
| Water Resistance | Completely waterproof structure |
| Steam Resistance | Protects against steam and moisture |
| Suitability | Ideal for demanding underground conditions |
Availability
Physical and Technical Properties
Feature Value
| Film thickness | 1000 μm |
| Zinc layer thickness | 100 μm |
| Total thickness | 1250 μm |
| Operating temperature | -10 ÷ 70 °C |
| Minimum operating temperature | at least +10 °C |
| Electrical conductivity | 0 ohms mm² |
| Cold bending test (DIN EN 1109) | No cracks at -25 °C |
| Water impermeability (DIN EN 1928, method B, water pressure 4 bar, 24h) | Impermeable |
| Water vapor impermeability (DIN 1931, method B) | SD=398, µ=2.84×10⁵ |
| Final tensile strength (DIN 12311-2) | Longitudinal ≥938, transverse ≥763 |
| Tear resistance test (EN 12310-2) | Longitudinal 93N, transverse 91N |
| Shelf life | 2 years |
| Storage | Store in a ventilated, dry, and cool warehouse at room temperature |
AntiRust Tape – Installation Instructions
Surface Preparation
The surface must be dry and free from corrosion.
Remove all coatings that cover the metal surface.
Surfaces with visible light or medium corrosion should be cleaned by mechanical or manual wire brushing.
To ensure optimal functionality of the tape, it is essential to establish direct contact between the tape and the steel surface.
Tape Application
The tape is applied directly onto the steel structure.
During installation, the tape should cover the entire surface, leaving no exposed metal.
To protect irregular shapes, the tape should be cut to the required dimensions.
Apply the tape carefully to avoid air bubbles or wrinkles.
Excellent adhesion can be achieved by using a magnetic roller applicator.
For pipes, the fastest and most efficient application method is using a wrapping machine.
If a wrapping machine is not available, the tape should be cut and applied manually.
The tape can be pressed onto the metal surface using a squeegee to ensure a strong bond between the tape and the metal.
Files
NoRust ActiveShield Tapes
